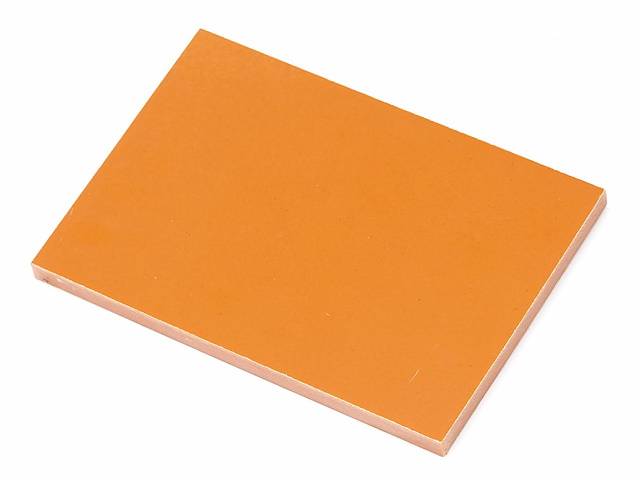

Orange Bakelite Sheet
Orange Bakelite SheetOrange Bakelite SheetOrange Bakelite SheetOrange Bakelite Sheet
Product Info:
Product name: Orange Bakelite Sheet
Product Catalog: Insulation Sheet Series
OnLine Service:
Print this Page Bookmark this
Skype Online E-mail Us
PDF Download
【Prev Products】【Next Products】
Description Send Inquiry

Thickness: 1mm-60mm

Length: 1020*2020mm,1220*2440mm,1020*1220mm.

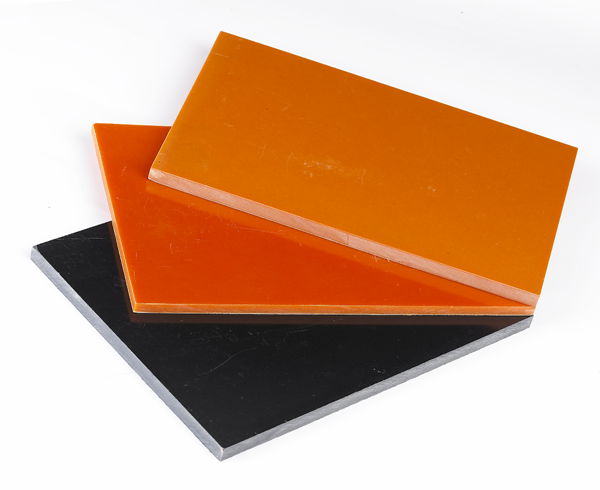

Color: Orange, Black

Grade: A, B

Bakelite sheet synthetic: Paper impregnated with phenolic resin, by baking and heat pressing.

Bakelite sheet feature: Good electrical properties and good machining performance under room temperature, the density is 1.45 g/cm3, angularity ≤ 3 ‰, with excellent electrical, mechanical and processing properties. It can be used in transformer oil.

Applications of bakelite sheet:Widely apply to components in motor, electrical equipment and insulation system which has high requirement on mechanical property. It has good mechanical strength. It also apply to PCB drilling backing sheet, distribution switch box, fixture board, mould plate, high voltage and low-voltage distribution cabinet, packer, electric comb, motor, machinery mold, PCB, ICT fixture, forming machine, drilling machine,surface grinding plate, transformer oil.

Physical properties

No.

Item

Unit

Index value

1

color

Orange/Black

2

density

g/cm3

1.45-1.5

3

coefficient of linear thermal expansion

Kx

10

4

shock strength

KJ/㎡

≥15

5

combustibility(UL94)

HB

94

6

vertical bending strength

MPa

≥120

7

vertical compression strength

MPa

≥250

8

tensile strength

MPa

≥100

9

impact strength

KJ/m

≥67

10

adhesive strength

N

≥3600

11

insulation resistance after soaking

Ω

1.0*108

12

vertical electric strength

KV/m

≥12.1

13

parallel breakdown voltage

KV

≥10

14

relative dielectric constant(1MHz/50Hz)

≤5.5

15

volume resistance

Ω x cm

107~108
